Small mistakes on the shopfloor can result in large losses—but what if your process could actually stop them from occurring in the first place? We reveal in this blog how Poka-Yoke (mistake-proofing), a lean principle, works and fits into modern manufacturing, as well as the practical steps to make reliable processes that are resistant to errors.
The Hidden Cost of Small Mistakes
Mistakes are part of any factory. A component is turned the wrong way during installation, a bolt is overlooked, or a switch is set to the wrong position. It just takes a moment—and a defect is created.
Such errors may appear insignificant, yet their influence grows exponentially. The issue that starts the rework chain. Then the delivery is missed. Then, the customers who complain. These “small” problems slowly but surely drain your margins, disrupt your flow, and damage your reputation.
Most of the time, errors are not the result of bad operators, but of bad processes. Processes that depend too much on memory, judgment, or speed are the ones causing the errors.
This is the point where Poka-Yoke comes in—the lean manufacturing principle that supports stopping errors before they happen.
What Poka-Yoke Means and Why Should You Care?
Poka-Yoke is a term in Japanese that means “mistake-proofing.” It was created by Shigeo Shingo as a part of the Toyota Production System (TPS) to minimize the chance of human error in repetitive work.
However, Poka-Yoke should not be considered a complicated idea. Essentially, it is about coming up with methods that inevitably lead people to the correct action, even if they are distracted, tired, or new.
Rather than:
“How can we find this error later?”
It asks:
“How can we make this error completely impossible?”
That one simple change of thought has a huge impact.
.webp&w=3840&q=75)
Mistakes Still Happen—Even in Smart Factories
One can think that human error has been eliminated in modern factories by the presence of automation, sensors, dashboards, and real-time alerts.
However, the truth is different: production lines have not gotten rid of human error.
Moreover, even the most sophisticated manufacturing systems still require human intervention, particularly in the areas that have the greatest impact. Human inspection, changeovers, data entries, material handling, and process decisions are frequently done by humans. And this is precisely the place where fluctuation finds its way.
Errors committed in these spheres are usually difficult to detect and expensive at the same time. Among the manufacturers’ difficulties that cause them the most trouble and the highest cost today are:
- Incorrect machine parameters during setup
- Steps in the standard operating procedures were skipped
- Using the wrong part, tool, or material
- During packing, incorrect or partial labels are being applied
- Untraceability caused by inconsistent documentation entries
These are not “old world” problems; smart factories are struggling with these issues daily.
Here is the place where Poka-Yoke has a great impact not only on the manual lines, but also within the digitized, connected workflows.
Nowadays, Poka-Yoke devices in digital-first factories acquire various forms:
- Software validations help by not allowing incomplete or incorrect entries.
- Barcode scans are used to check if the right part or batch is being used.
- Workflow conditions can stop the process stages from going further if the requirements are not fulfilled.
The technology can facilitate the consistency of work; however, it is the process design that ultimately decides whether the mistakes will be stopped or allowed to continue downstream.
To sum up, smart factories cannot rely on smart machines only.
They require smart processes, which are designed to be able to prevent mistakes from happening.
.webp&w=3840&q=75)
Mistake-Proofing in Real Life: You Use It Every Day
Poka-Yoke is not only a production idea—it is something that we have in our normal life routine, and most of the time, we are not aware of it. Do you realise that your microwave cannot work if the door is not shut, or that your debit card comes out before the ATM gives the money? Also, the wire of your laptop is made to go only one way. Those are not simply easy-to-use features; they are the parking agents’ decisions implementing measures against misuse.
The same logic is applicable in the industrial area. The part that can only be put in the machine in the proper direction, the torque tool that stops when the pressure is at the desired level, or the packaging system that stops when a label roll is empty—all of these are genuine instances of mistake-proofing working in the real world. Poca Yoka's strength is due to its rudiments. It is not about advanced technology; it is about process design that lessens reliance on memory, gut feeling, or luck.

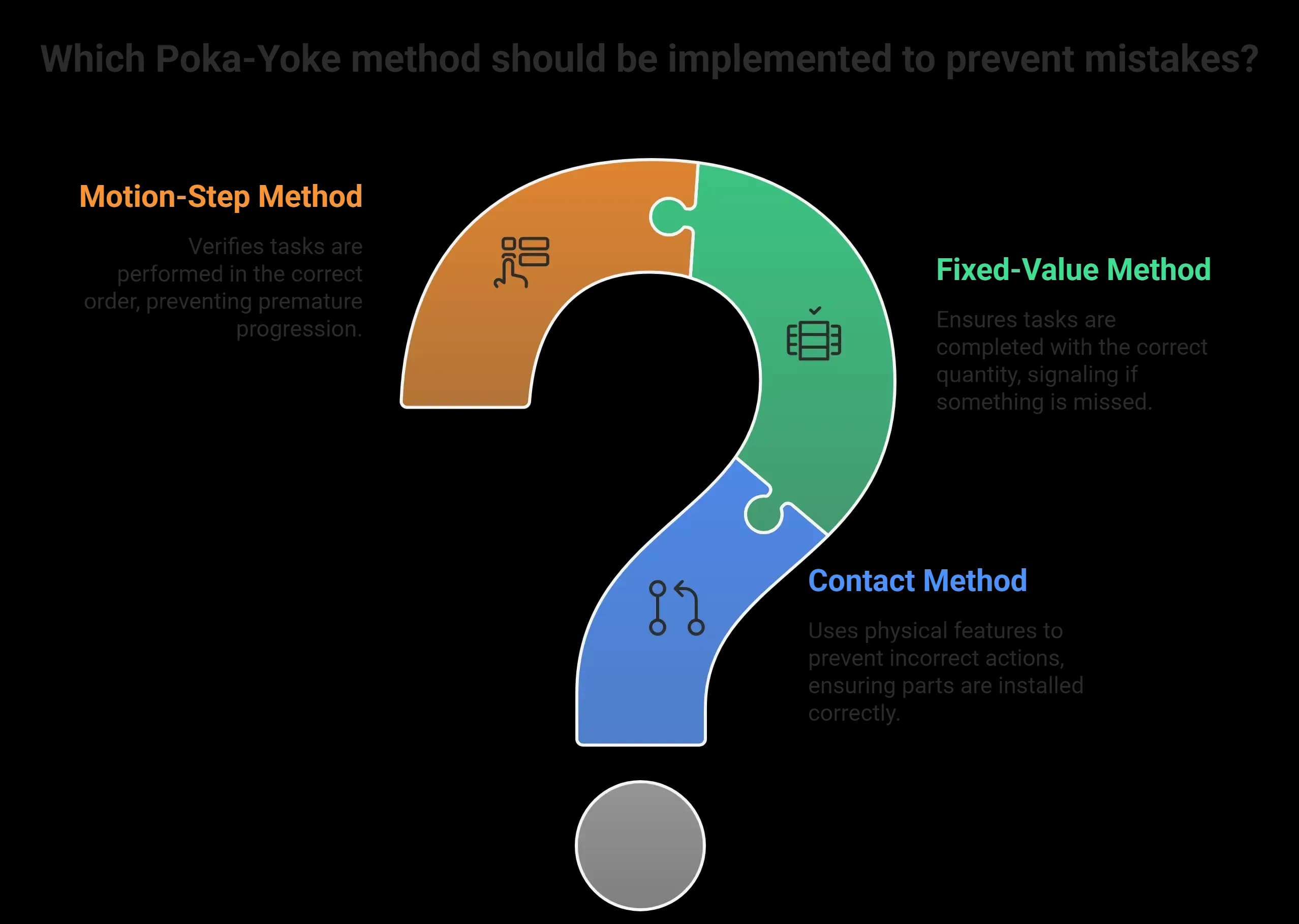

Three Smart Ways to Design Out Mistakes
Basically, a Poka-Yoke device is one of the three categories. As soon as you comprehend the categories, you will turn to catalogue board operations, which will bring your entire factory to the idea of mistake-proofing, be it at the assembly line, in packaging, or even in digital workflows.
The first one is the contact method, which uses physical attributes such as volume, shape, or form to inhibit the wrongdoing. To illustrate, a connector that only works in one direction insists that a part cannot be installed incorrectly, regardless of whether the operator is in a hurry or careless.
The second category is the fixed-value method that guarantees a work is done a certain number of times or using the right quantity. The most obvious example is the parts tray with the predefined slot—if one slot is left empty, it immediately indicates that something has been overlooked.
The last one, the motion-step method, refers to sequence control. It interacts with the correct order of execution of tasks and stops the next step if the previous one is not done. This may be a digital form that cannot be submitted unless every required field is completed, or a machine that comes to a halt until a checklist is acknowledged.
There is no need to make these methods complicated. The goal remains the same—whether they are mechanical, visual, or digital, or a combination of all three.
.webp&w=3840&q=75)
Why Toyota Made Poka-Yoke a Factory Essential
In the Toyota Production System (TPS), quality is not something that is left for inspection at the end of the line; it is a quality that is built into every step of the production line. This core philosophy is one of the main reasons why Toyota made Poka-Yoke an indispensable tool in its manufacturing strategy.
Poka-Yoke is in support of two of TPS’s most significant principles. The first is Jidoka, which provides the system and employees with the ability to recognise irregularities and stop the production process by themselves if something is not right. This guarantees that problems are solved on the spot—before they spiral into more significant defects. The second one is Respect for People, whose logic is organising the work in such a way that people are helped to do their jobs well instead of setting them up for failure. Instead of blaming operators for mistakes, Toyota is most concerned with removing the factors that facilitate the occurrence of errors in the first place.
One of the best examples of this is the Andon system—a visual alert tool on the shopfloor. If a worker sees a potential problem, they are authorised to pull the Andon cord and thus stop the line. This is not considered a disruption, but rather a proactive measure of quality control. Because at Toyota, defect prevention is considered more valuable than meeting daily output targets.
Poka-Yoke is quite compatible with this mentality. It empowers frontline employees not just to perform the process, but to protect the process. It converts quality from just something that is checked into a shared responsibility. And what is more, it supports the idea that right from the first time doing things isn’t just a target—it’s actually something that can be designed into the system from the very beginning.
How to Bring Mistake-Proofing to Your Shopfloor
Here is a guide on how to go about Poka-yoke implementation without making it too complicated:
Step 1: Spot the patterns
You need to examine your quality logs, NCRs, and rework reports. What locations have the same mistakes over and over again?
Step 2: Go to the Gemba
Gemba is the place where the mistake takes place. To watch the process of the incident is the best way to understand it. Is the operator using memory? Are there excess steps? Is the design confusing?
Step 3: Find the root cause
Apply the 5 Whys or 3W1H method for root cause analysis. Neither method aims at establishing blame; instead, they show the process gap that is lacking.
Step 4: Choose a mistake-proofing method
Is there a way to physically stop the error? Could the visual cue be added? Could the system be forced to perform a check?
Step 5: Test and adapt
Practice with your team. Ensure that it is effective in authentic situations—and that it does not slow the work unnecessarily.
Step 6: Standardise and scale
If you have achieved your goal, incorporate it in your SOP, training, and audit activities to make it official. Find other areas where you can implement this method.
Good Poka-Yoke implementations are usually the result of co-operation with operators rather than a provision for them.
Final Thoughts: Build Processes That Protect People
Every factory has zero defects on its agenda. However, only a few actually plan for it. Poka-Yoke offers manufacturers a feasible, repeatable method of moving towards that target—without needing huge investments or complicated systems.
It results in processes that do not demand perfection from people, but rather are there to assist people to succeed, no matter what. Mistake-proofing is a mindset that deserves to be deeply ingrained in your operations, whether you have a manual line or you are expanding a smart factory.
Great factories are not only productive, but their biggest strength is that they are resilient. They are structured in a way that makes it possible for them to get things right - each time.
