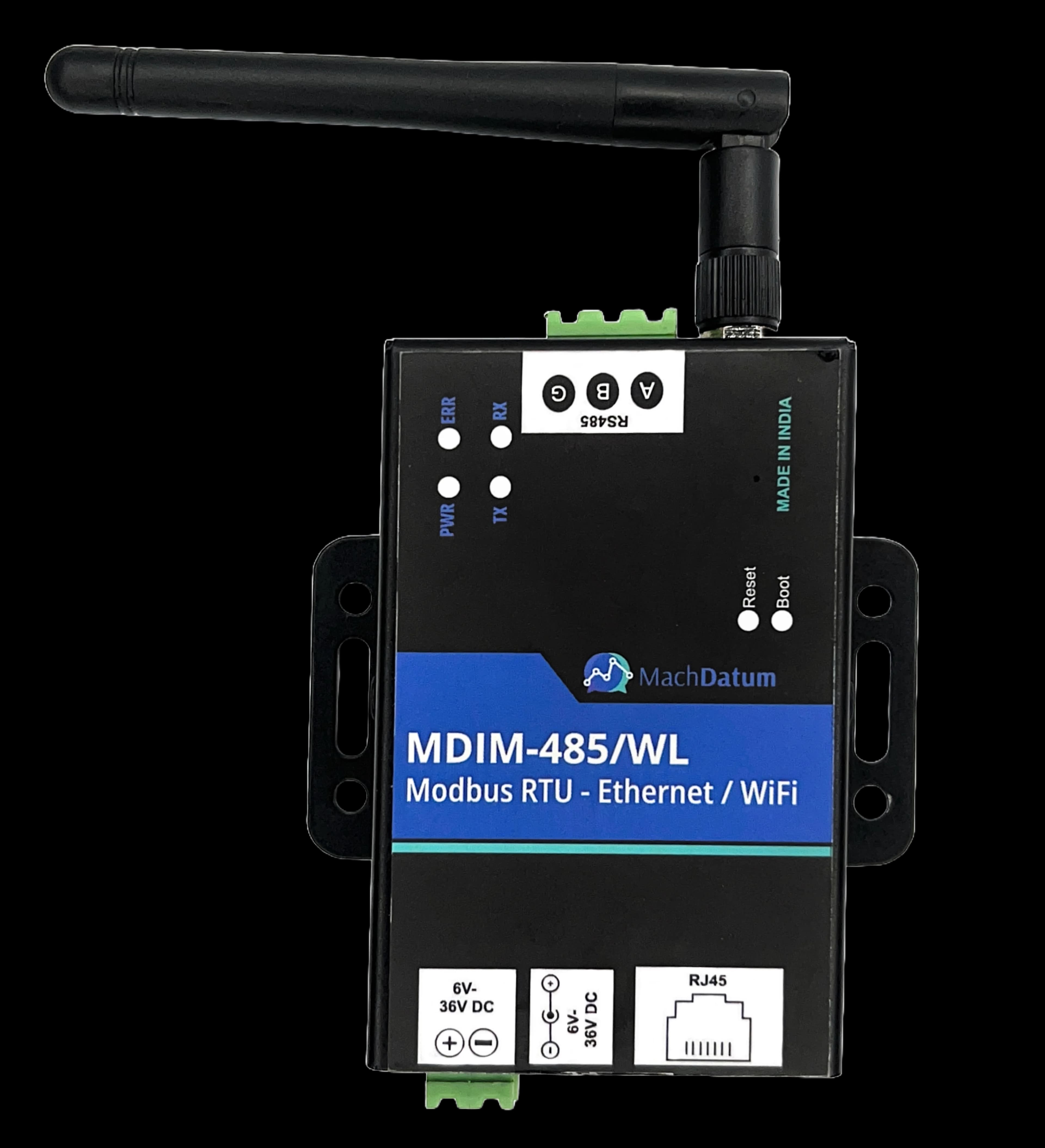

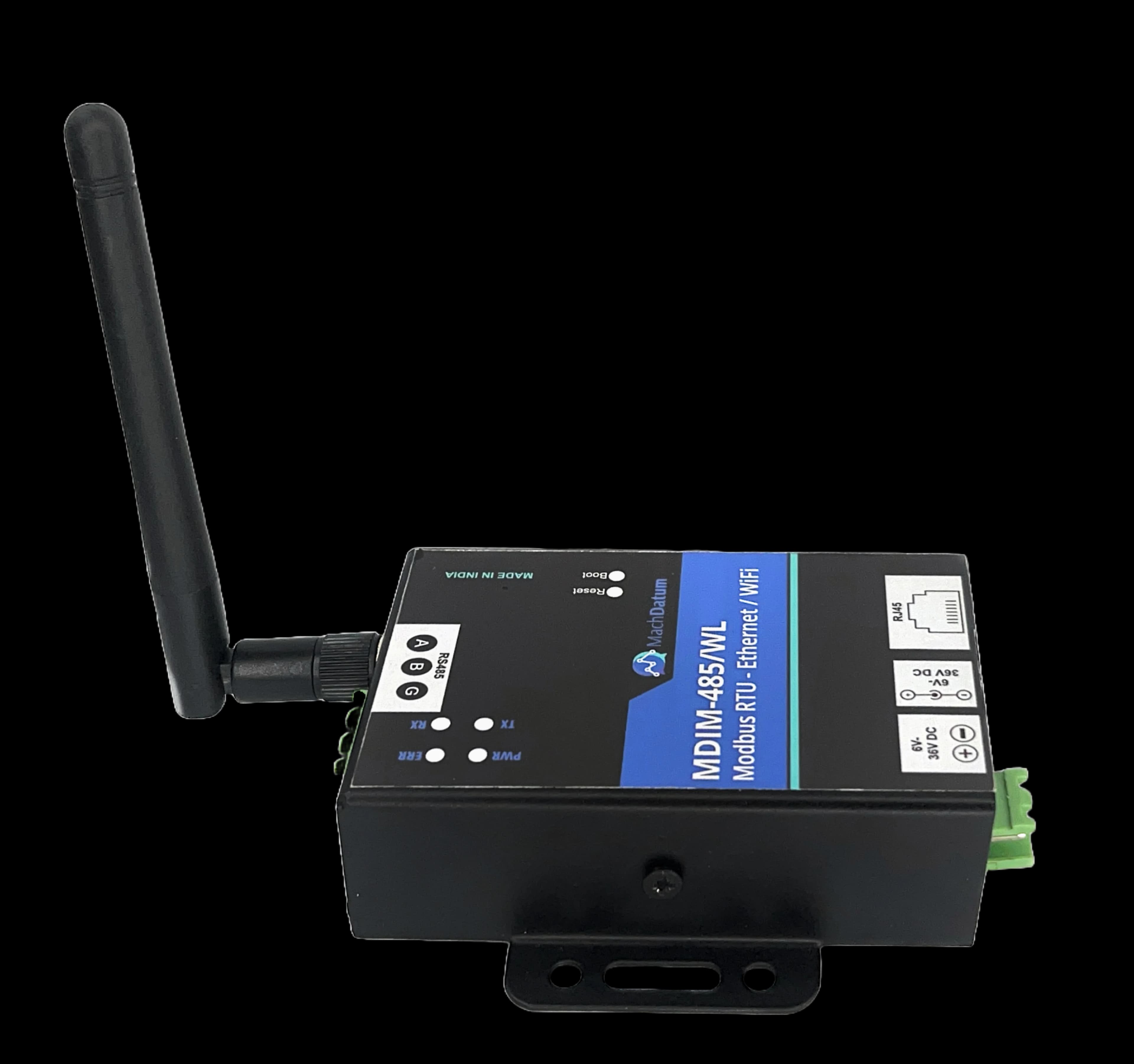

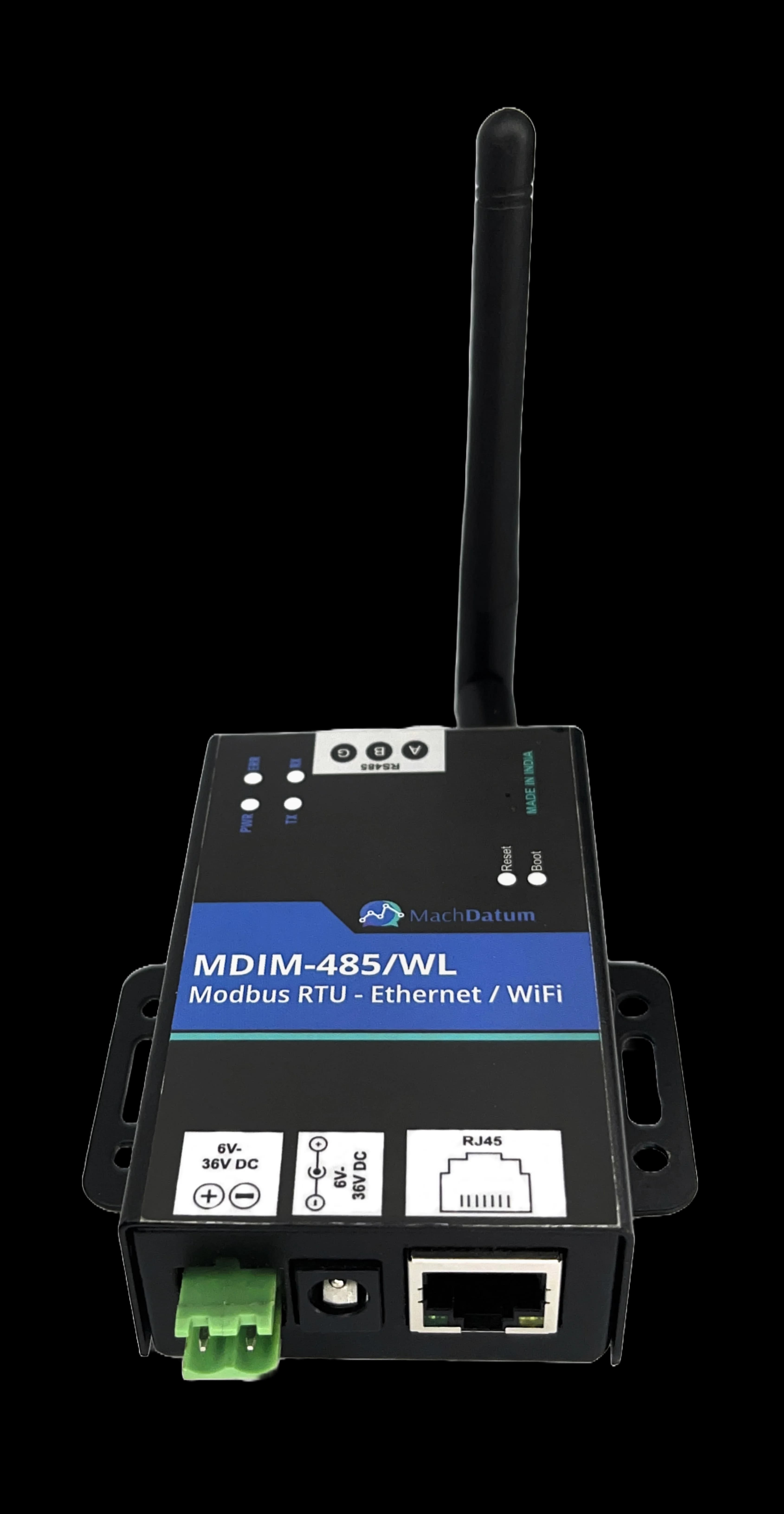

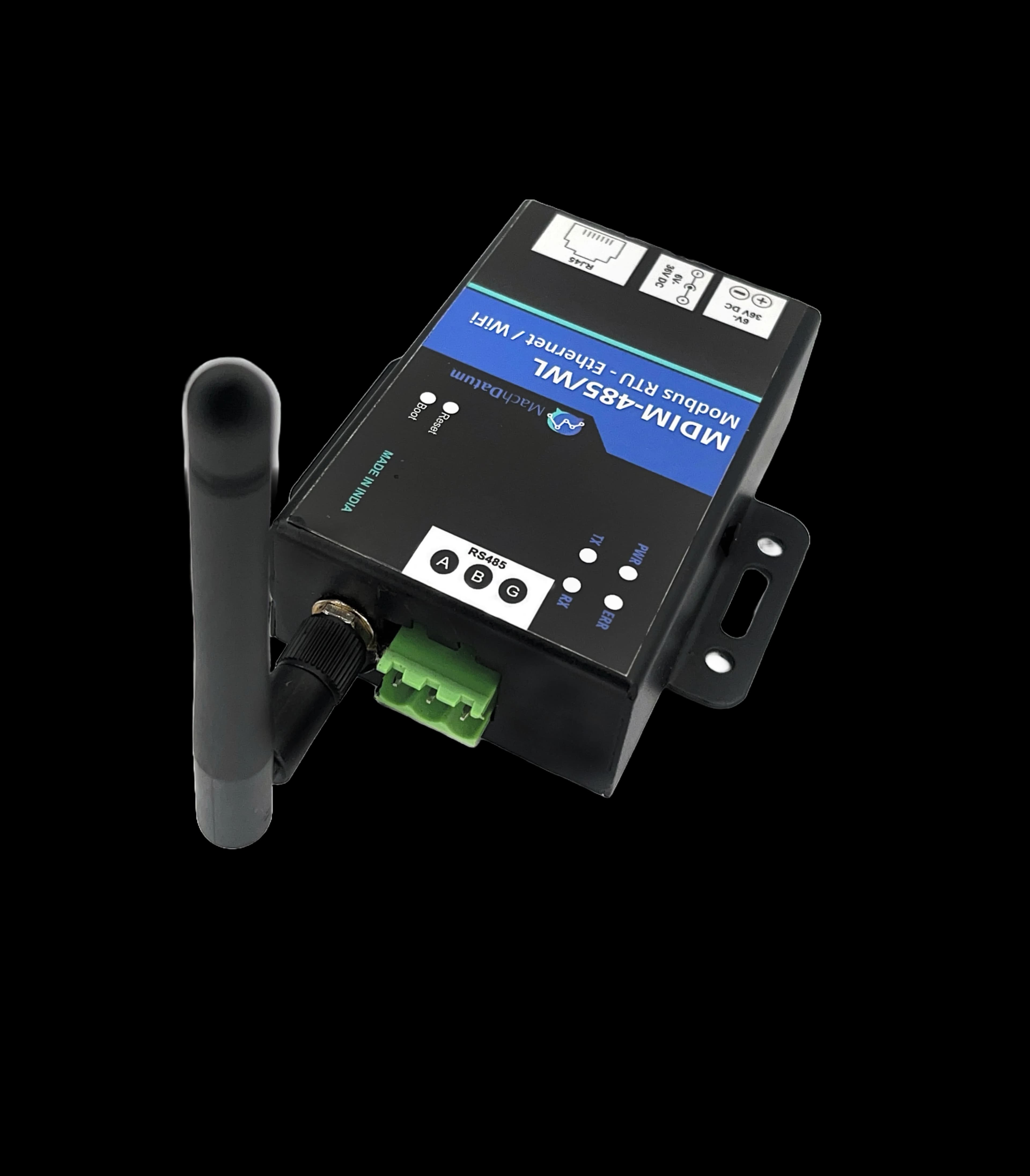

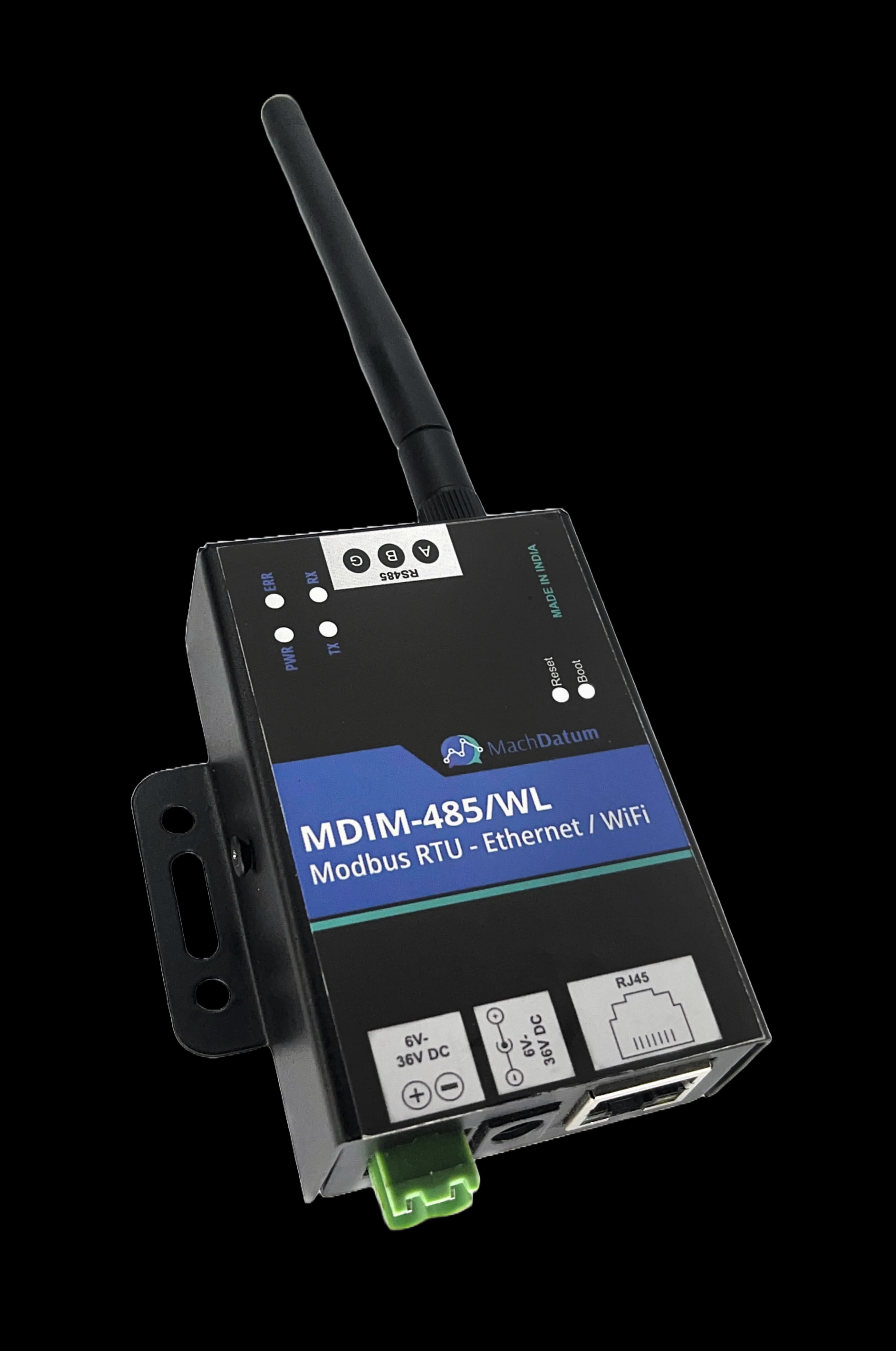

RS485 to WiFi Converter
Industrial WiFi gateway with Modbus RTU → TCP bridging and native MQTT. Send your field data to the cloud without pulling a single cable.
Inclusive of all taxes · Free shipping above ₹10,000
- WiFi + Ethernet dual connectivity
- MQTT for cloud platforms (AWS, Azure, ThingConnect)
- Modbus RTU ⇄ Modbus TCP bridging
- Wide operating temperature (-40 to 75°C)
- Multi-client TCP — multiple SCADAs at once
- 2-year warranty + free tech support
How it works
From the RS485 bus to the cloud — wirelessly.
Connect your Modbus RTU devices to the screw terminals. The MDIM-485/WL exposes them over WiFi as Modbus TCP and publishes register values to your MQTT broker. SCADA, cloud dashboards, and edge apps all see the same live data.
PLC / Meter
Modbus RTU
RS485
MDIM-485/WL
WiFi Bridge
WiFi · MQTT
SCADA / Cloud
TCP / MQTT
Wireless reach
Skip the conduit. Skip the trenching.
2.4 GHz 802.11 a/b/g/n radio with up to 100 m line-of-sight range. Retrofit existing buildings, monitor distributed solar farms, or relocate equipment without rerouting cables. Use Ethernet and WiFi together for failover when uptime matters.
802.11 a/b/g/n
2.4 GHz, up to 150 Mbps
Native MQTT
AWS, Azure, ThingConnect
Dual interface
WiFi + Ethernet active
Multi-client TCP
SCADA + MES + historian
Built for the factory floor
Same hardened enclosure. Same -40 to 75 °C spec.
Metal housing, surge and ESD protection on the RS485 line, dual 6–24 VDC power input, 5–95% humidity tolerance. Designed to live inside the panel, not on a desk.
Wide thermal range
-40 °C to 75 °C operating
Line protection
Surge + ESD on RS485
Dual power input
6–24 VDC terminal or jack
Metal housing
160 g, 82 × 51.5 × 23 mm
MDIM Manager
WiFi credentials, MQTT broker, Modbus mapping — one tool.
Free Windows utility to set SSID, password, security mode, IP, MQTT topic, and register mappings. Web-based configuration also available on the device IP.
Where it fits
Anywhere RS485 can't reach a cable.
Industrial Automation
Wireless link from PLCs, VFDs, and controllers to SCADA — useful where pulling cable is expensive or impossible.
Building Automation
Retrofit HVAC, energy meters, and BMS controllers without disrupting operations or running new conduit.
Solar & Energy
Pull data from inverters, BMS, and energy meters across large solar farms — no field cabling required.
Water & Environmental
Wireless sensor networks for tank levels, water quality, and pump control with real-time MQTT alerts.
Transportation & Infra
Monitor traffic controllers, signaling, and tunnel ventilation across distributed infrastructure sites.
Smart Agriculture
Connect irrigation controllers, soil sensors, and greenhouse automation for mobile-friendly remote control.
Specs
Technical specifications
Communication
- Ethernet Protocol
- Modbus TCP
- Ethernet Data Rate
- 10 Mbps
- Network Interface
- 1 × Ethernet (RJ45)
- WiFi Standard
- IEEE 802.11 a/b/g/n
- WiFi Band & Speed
- 2.4 GHz, 150 Mbps
- Free-Space Range
- Up to 100 m
- Cloud Protocol
- MQTT
- Serial Port
- RS-485 × 1
- Baud Rate
- 50 bps – 921.6 kbps
- Line Protection
- Surge & ESD
Electrical
- Input (Screw Terminal)
- 6 – 24 VDC
- Input (Power Jack)
- 6 – 24 VDC
- Operating Current
- 600 mA
- Power Consumption
- 3 W @ 300 mA
Physical
- Housing
- Metal
- Dimensions (L × W × H)
- 82 × 51.5 × 23 mm
- Weight
- 160.4 g
Environmental
- Operating Temperature
- -40 °C to 75 °C
- Storage Temperature
- -40 °C to 85 °C
- Ambient Humidity
- 5 – 95% RH
Resources
Datasheets, manuals & software
Datasheet (DS_MDIM485_WL)
v1.1 · Released Oct 7, 2025
User Manual (UM_MDIM485_WL)
v1.1 · Released Oct 7, 2025
MDIM Manager (Configuration App)
v1.1 · Released Oct 7, 2025
Already own this device? Use our Device Support Tool to look up your serial number and instantly get default IP, network configuration, and firmware details.
FAQ
Questions, answered.
Ready to take your RS485 wireless?
Get a quote with volume pricing, lead time, and integration support — usually in under 24 hours.
Related Devices
Explore other products in our RS485 converter lineup

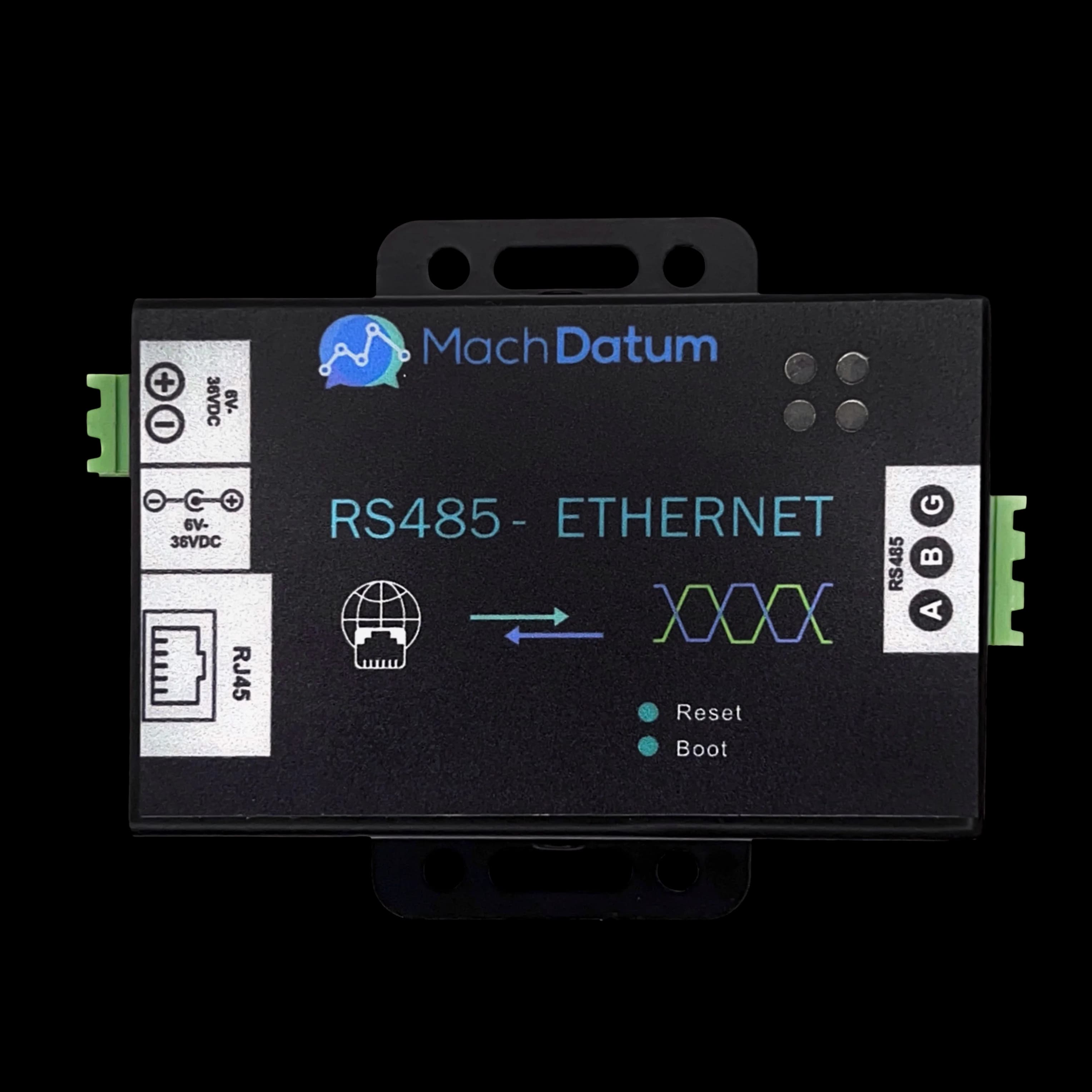

MDIM-485
