RS485 to Ethernet Converter
Industrial-grade Modbus RTU → TCP gateway. Drop it on a DIN rail and your legacy serial devices show up on the network in minutes.
Inclusive of all taxes · Free shipping above ₹10,000
- Seamless Modbus RTU to Modbus TCP bridging
- Wide operating temperature (-40 to 75°C)
- Surge & ESD protection on RS485
- Dual power input (6–24 VDC)
- 2-year warranty + free tech support
How it works
Bridges Modbus RTU to Modbus TCP — transparently.
No protocol gymnastics, no firmware quirks. Plug your RS485 multidrop bus into one side, run an Ethernet cable to your SCADA or cloud gateway on the other. Bidirectional, lossless, configurable.
PLC / Meter
Modbus RTU
RS485
MDIM-485
Bridge
Ethernet
SCADA / Cloud
Modbus TCP
Built for the factory floor
Survives the panel. Even the unconditioned ones.
Metal housing, -40 to 75 °C operating range, surge and ESD protection on the RS485 line, dual 6–24 VDC power input. Designed for the kind of cabinet that doesn't come with air-conditioning brochures.
Wide thermal range
-40 °C to 75 °C operating
Line protection
Surge + ESD on RS485
Dual power input
6–24 VDC terminal or jack
Metal housing
160 g, 82 × 51.5 × 23 mm
Field-friendly wiring
Pluggable terminals. Clear labelling. Status LEDs you can read across the panel.
Mating screw-terminal connector, multidrop RS485 bus support, and dedicated power / link / TX / RX indicators so commissioning takes minutes, not hours.
- Multidrop RS485 bus — multiple RTU slaves on one port
- Baud rate 50 bps to 921.6 kbps, software-configurable
- 10 Mbps RJ45 with auto-MDIX
- Power / link / activity LEDs
MDIM Manager
Configure in minutes from a Windows laptop.
Free desktop tool to set IP address, baud rate, parity, slave mappings, and firmware updates. No cloud login, no subscription — just connect over Ethernet and go.
Where it fits
Wherever RS485 meets Ethernet.
Industrial Automation
Bridge PLCs to SCADA over Ethernet for real-time line monitoring and centralized control.
Building Automation & HVAC
Integrate HVAC, energy meters, and access control into building management networks.
Smart Grid & Energy
Pull live data from solar inverters, energy meters, and power distribution gear.
IoT & Remote Monitoring
Connect distributed sensors to the cloud for analytics and predictive maintenance.
Specs
Technical specifications
Communication Interfaces
- Ethernet Protocol
- Modbus TCP
- Ethernet Data Rate
- 10 Mbps
- Network Interface
- 1 × Ethernet (RJ45)
- Serial Port
- RS-485 × 1
- Baud Rate
- 50 bps – 921.6 kbps
- Line Protection
- Surge & ESD
Electrical
- Input (Screw Terminal)
- 6 – 24 VDC
- Input (Power Jack)
- 6 – 24 VDC
- Operating Current
- 600 mA
- Power Consumption
- 3 W @ 200 mA
Physical
- Housing
- Metal
- Dimensions (L × W × H)
- 82 × 51.5 × 23 mm
- Weight
- 160.4 g
Environmental
- Operating Temperature
- -40 °C to 75 °C
- Storage Temperature
- -40 °C to 85 °C
Resources
Datasheets, manuals & software
Datasheet (DS_MDIM485)
v1.1 · Released Oct 7, 2025
User Manual (UM_MDIM485)
v1.1 · Released Oct 7, 2025
MDIM Manager (Configuration App)
v1.1 · Released Oct 7, 2025
Installation Guide
— · Released —
Already own this device? Use our Device Support Tool to look up your serial number and instantly get default IP, network configuration, and firmware details.
FAQ
Questions, answered.
Ready to bridge your RS485 devices?
Get a quote with volume pricing, lead time, and integration support — usually in under 24 hours.
Related Devices
Explore other products in our RS485 converter lineup

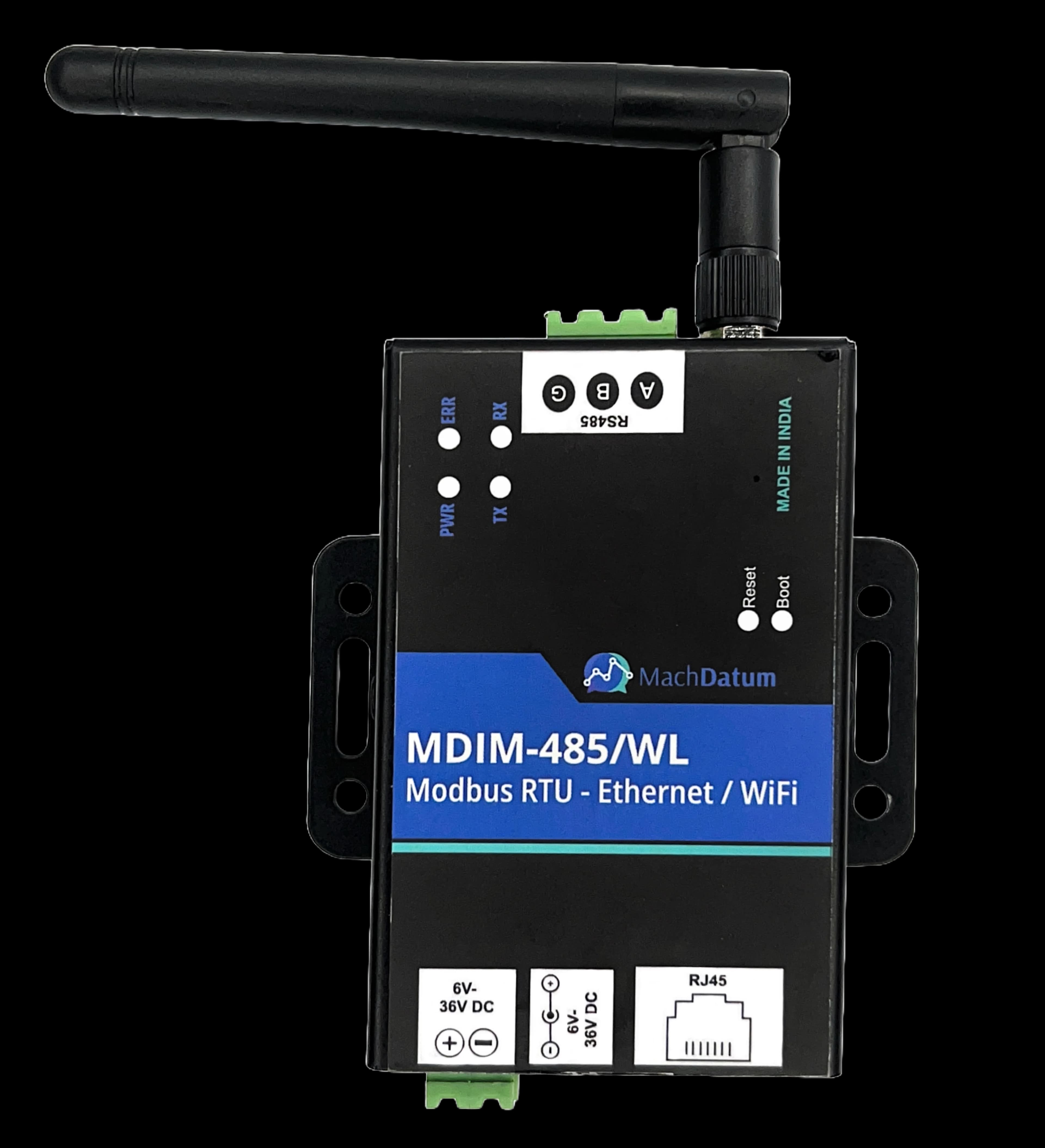

MDIM-485/WL
